Acumentrics. Portable. Powerful. Proven.

Power Has Never Been More Portable

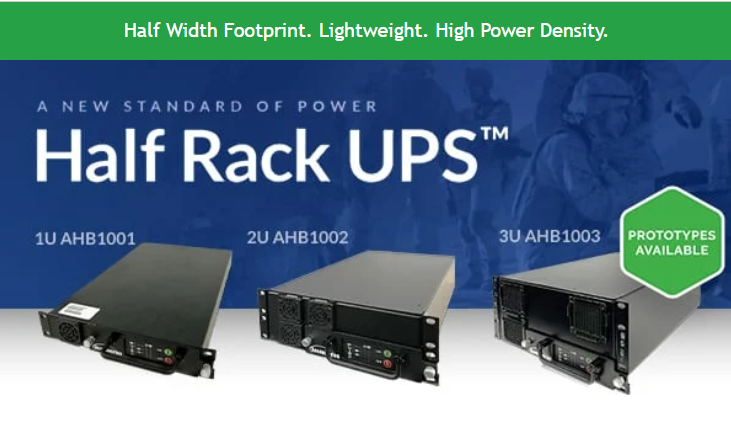

Designed for both mounted and dismounted tactical operations, this rugged UPS delivers unmatched reliability in a compact form. Acumentrics uses advanced technologies in power conversion and high-performance digital control to optimize the SWaP of the COTS 1000W Rugged Half Rack UPS™ family.

▸ Designed to support “At the Quick Halt” and “On the Move” mounted and dismounted tactical missions

▸ Designed to work with small form factor modules, racks and cases

Sawtooth; Vibration: 5-500Hz, 2Grms, Random

▸ Transport: UN-DOT 38.3

▸ CE (coming soon)

Environmental

▸ Operating: -20 °C to 55 °C

▸ Storage: -40 °C to 60 °C

▸ Humidity: up to 95% (non-condensing)

Mechanical Specs

▸ Chassis Length/Width: 15" L / 9.4" W

Battery Runtime

▸ Typical Run Times:

• 20 minutes @ 400W load

• 6 minutes @ 1000W load

▸ Recharge Time: 3 hours to 90% of present capacity

MIL-STDs and Certifications

▸ EMI/EMC: MIL-STD-461G: CE102, CS101, CS114, CS115,

CS116, CS118, RE102, RS103

▸ Environmental: MIL-STD-810H - Shock: 20G, 11 ms,

Let’s Collaborate

Astron Electronics is your local representative in Southern California for Acumentrics.

If your project requires rugged, high-performance power solutions, we’re here to help. Reach out to schedule a meeting with us and our partners at Acumentrics—we’re happy to support your next design challenge.
